Revit 2D Detail Item Families: What they are and when to use them
Umberto RinaldiShare
If you've ever wondered what Revit 2D Detail Item families are — and whether you actually need them — this article gives you a direct answer. Detail Items are 2D-only families that appear exclusively in views, not in the 3D model. They're one of the most underused tools in Revit, and one of the most useful when you know when to reach for them.
What Is a Detail Item Family in Revit?
In Revit, families fall into two broad categories: loadable 3D families (furniture, fixtures, equipment) and 2D annotation/detail families. Detail Item families sit in the second category.
Key characteristics:
- View-based only — they appear in plan, section, elevation, or detail views, but have zero geometry in the 3D model
- Lightweight — no impact on model performance or file size beyond the view they're placed in
- Drafting tool — used to add graphic information that doesn't need to exist as real geometry
- Category: Detail Items — placed via the Annotate → Detail → Component workflow, not via Architecture → Component
They are not the same as face-based or level-based 3D families. If you place a Detail Item in a floor plan, it won't show up in your 3D view or renderings.
When to Use 2D Detail Item Families
1. People silhouettes in elevations and sections The most common use case. Adding human figures to interior elevations gives scale reference without adding geometry to the model. A 2D person silhouette placed in an elevation view is invisible in 3D — exactly what you want.
2. Furniture outlines in schematic plans For early-stage layouts where you need to show furniture placement without loading full 3D families. Faster, lighter, and easier to move around.
3. Graphic symbols and annotations North arrows, detail callout markers, custom hatch patterns, and drawing symbols are all Detail Items.
4. Construction detail drawings When producing wall sections or connection details, Detail Items let you add 2D linework (insulation, waterproofing layers, fixings) that doesn't need to be modeled in 3D.
2D vs 3D Families: The Practical Rule
| 2D Detail Item | 3D Loadable Family | |
| Appears in 3D view | ✗ | ✓ |
| Appears in plan/section/elevation | ✓ | ✓ |
| Affects model performance | Minimal | Yes |
| Used for rendering | ✗ | ✓ |
| Used for scale/graphic reference | ✓ | Possible but heavy |
Rule of thumb: if it needs to render or be coordinated in 3D, use a 3D family. If it's purely graphic — scale reference, annotation, schematic layout — use a Detail Item.

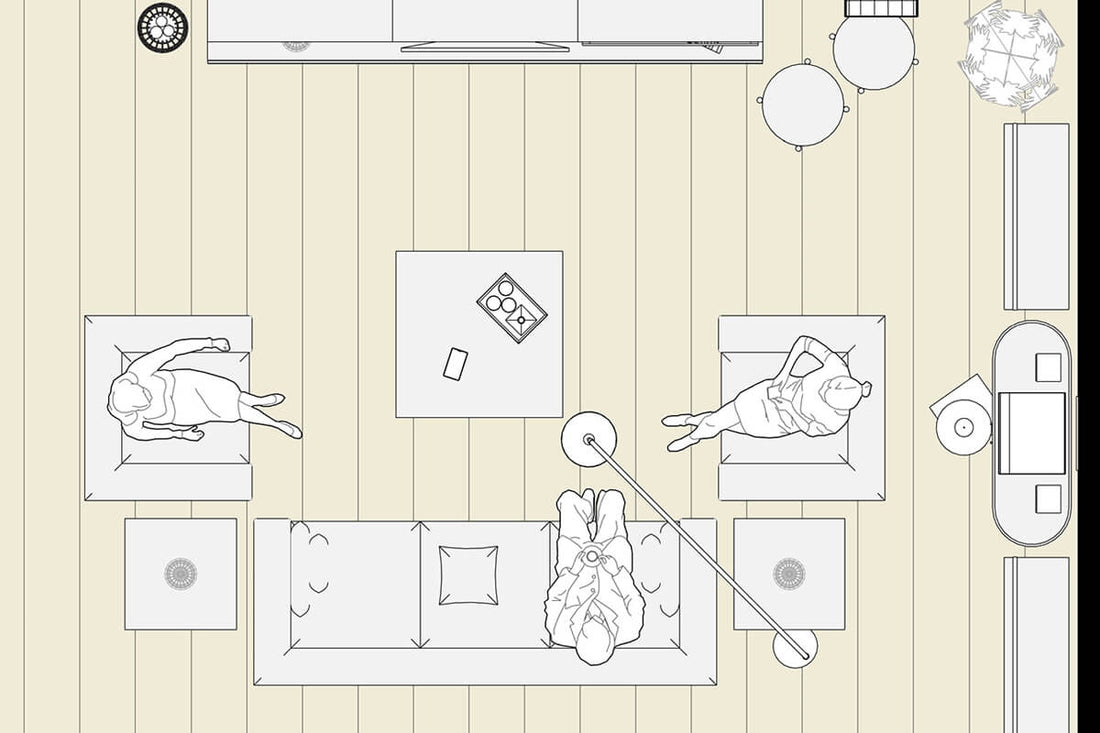

Factory268 People Silhouette Collections
Factory268 offers dedicated 2D People Silhouette families designed specifically for use in interior elevations, sections, and presentation drawings.
The collections include:
- Walking, seated, and reclining figures
- Clean linework optimized for both print and on-screen presentation
- Available as three separate collections, or as the combined People Silhouette Pack01 – Top View bundle (52 families) at a discount versus buying them individually
- They're built as proper Detail Item families — placed via Annotate, invisible in 3D, zero model overhead.
👉 Explore People Silhouette Collections on Factory268
If you want to see how a production-grade Detail Item family is actually built — template choice, fill region logic, view-specific overrides — the Inside the Files series covers the construction process in detail.
Who This Is For
- Students learning the difference between Revit family categories
- Junior BIM technicians who've been placing 3D families where a Detail Item would do the job faster
- Interior designers who need clean human figures in presentation elevations without bloating the model
