Type vs Instance Parameters in Revit Families: Which one do you actually need?

If you've ever wondered why two "parametric" Revit furniture packs behave in completely different ways — one lets you pick between fixed variants, the other lets you edit every dimension freely — the answer lies in the choice between Type Parameters and Instance Parameters. This isn't a minor technical detail: it's the decision that determines how you'll actually work with that family for the entire life of the project.

Type Parameters vs Instance Parameters: The Practical Difference

In Revit, every parameter in a family can be set as either Type or Instance:

Type Parameter — the value is shared across every instance of that Type. Change the width on the "180x90" Type, and it changes on every table of that Type placed in the project. Benefit: total consistency, a clean schedule, no accidental variants.

Instance Parameter — the value is independent for each individual placed instance. You can have ten desks of the same Type, each with a different depth, without creating ten different Types. Benefit: adapts to the real context of the project without bloating the Project Browser.

Neither is better in absolute terms — it depends on what you're modeling and how it will be used in the project.

When You Need Type: The Catalog Table Example

A furniture manufacturer doesn't sell "a table as long as you want" — they sell specific models: 140x80cm, 180x90cm, 220x100cm. If those dimensions were Instance Parameters, all it would take is one user stretching the table by 2mm to generate a ghost variant in the schedule — and with dozens of tables in a project, the material takeoff quickly becomes unreliable.

With Type, that variant either exists or it doesn't. No one can "lengthen it by 5mm" without consciously creating a new Type, and the schedule stays clean.

When You Need Instance: The Desk Example

A home office desk doesn't have a universal size — it needs to adapt to the room, the corner, the person using it. Here, width, depth, and height of the worktop need to be Instance Parameters: every desk placed in the project can have its own dimensions, without spawning a new Type for every minor variation.

The same applies to materials — top, legs, finishes — when you need different combinations room by room within the same product identity.

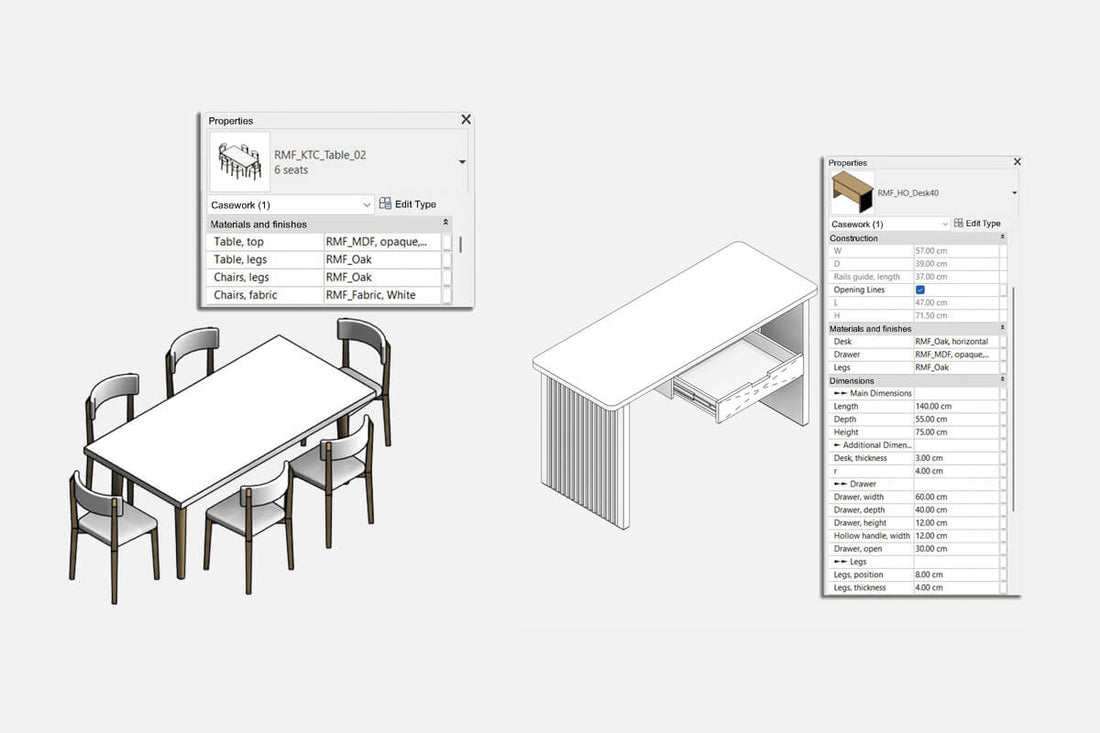

Factory268's Three Indoor Collections: A Real-World Case Study

The Factory268 catalog offers a concrete example of how this choice plays out across three levels of increasing flexibility:

Indoor Furniture Pack01 — 40 families, 100+ built-in Types
No Instance Parameters on dimensions: flexibility comes from Types already built into the family itself — 4 wood finishes selectable straight from the Type Selector, no need to open the Family Editor. Ideal for quickly populating a model with ready-made "catalog" furniture, with no further customization needed.

Indoor Furniture Pack02 — 41 families, materials via Instance Parameters
Dimensions stay fixed per Type, but materials and finishes are Instance Parameters — you can customize the look of each individual instance (e.g., a different finish for the same desk in two different rooms) without touching the base geometry.

Indoor Furniture Pack03 — 46 families, 36 with Instance dimensions
The most flexible tier: 36 out of 46 families have their main dimensions editable via Instance Parameters, on top of materials. Every instance is independent in both shape and finish — the right trade-off when the project needs real BIM coordination, not just presentation.

The same fixed-vs-parametric logic applies across other Factory268 categories — the Office Furniture guide breaks down a similar comparison between Pack01 and Pack02.

👉 Best Parametric Revit Families for Office Design — LOD 300 Ready

Which Pack Fits Your Workflow

Just need to quickly populate a rendering or presentation? Pack01 is more than enough — the pre-built Types cover most cases with zero customization required.

Need to present finish variants to a client, but dimensions are already locked? Pack02 gives you control over materials without the overhead of managing variable dimensions.

Coordinating a BIM model where every room has different dimensional requirements? Pack03 is the right call — Instance Parameters on dimensions mean you don't have to build a custom Type for every single room.

The Risk of Getting It Wrong

A family that's too rigid (Type only) becomes frustrating when the project needs real adaptation. A family that's too free (Instance on everything) is dangerous: it generates schedules full of accidental variants and makes the material takeoff unreliable. A professional family balances both — Type for product identity, Instance for adapting to context.

If you want to go deeper into how this choice affects schedules, the Project Browser, and overall model reliability, the Inside the Files series covers it in detail with real family examples.

👉 Instance vs. Type Parameters in Revit: The Choice That Determines Your Project's Fate

Explore Factory268's Indoor Collections

All three collections include Metric and Imperial formats, a showroom .rvt file with preset views, and a commercial license.

👉 Indoor Furniture Pack01 — 40 Families
👉 Indoor Furniture Pack02 — 41 Families
👉 Indoor Furniture Pack03 — 46 Families
