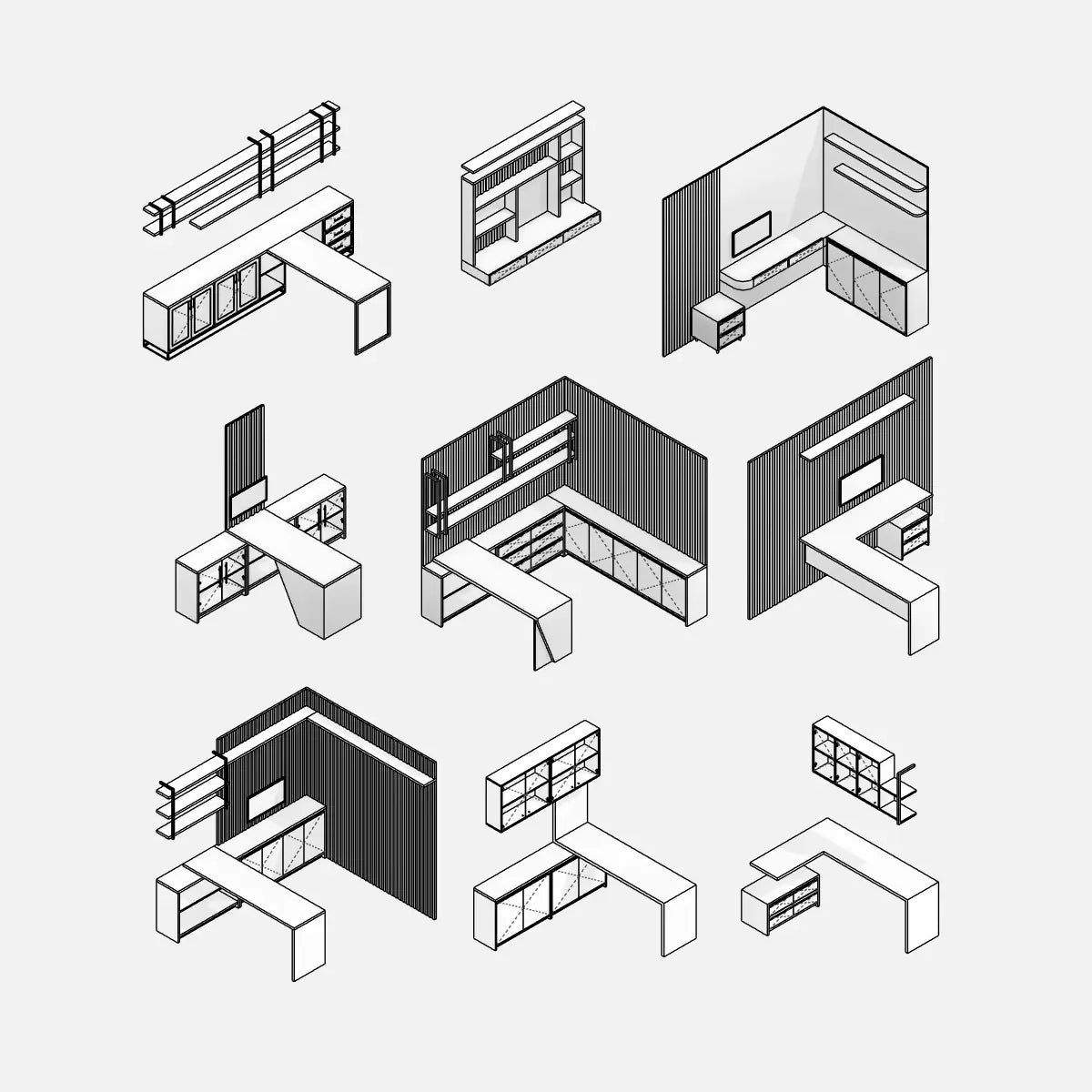

• Preview of the 9 parametric Revit families in the "Home Office Workstations 01" package. Professional Revit families for architects and BIM managers. BIM objects for residential projects, with materials and dimensions editable via instance parameters. Hidden Lines view.

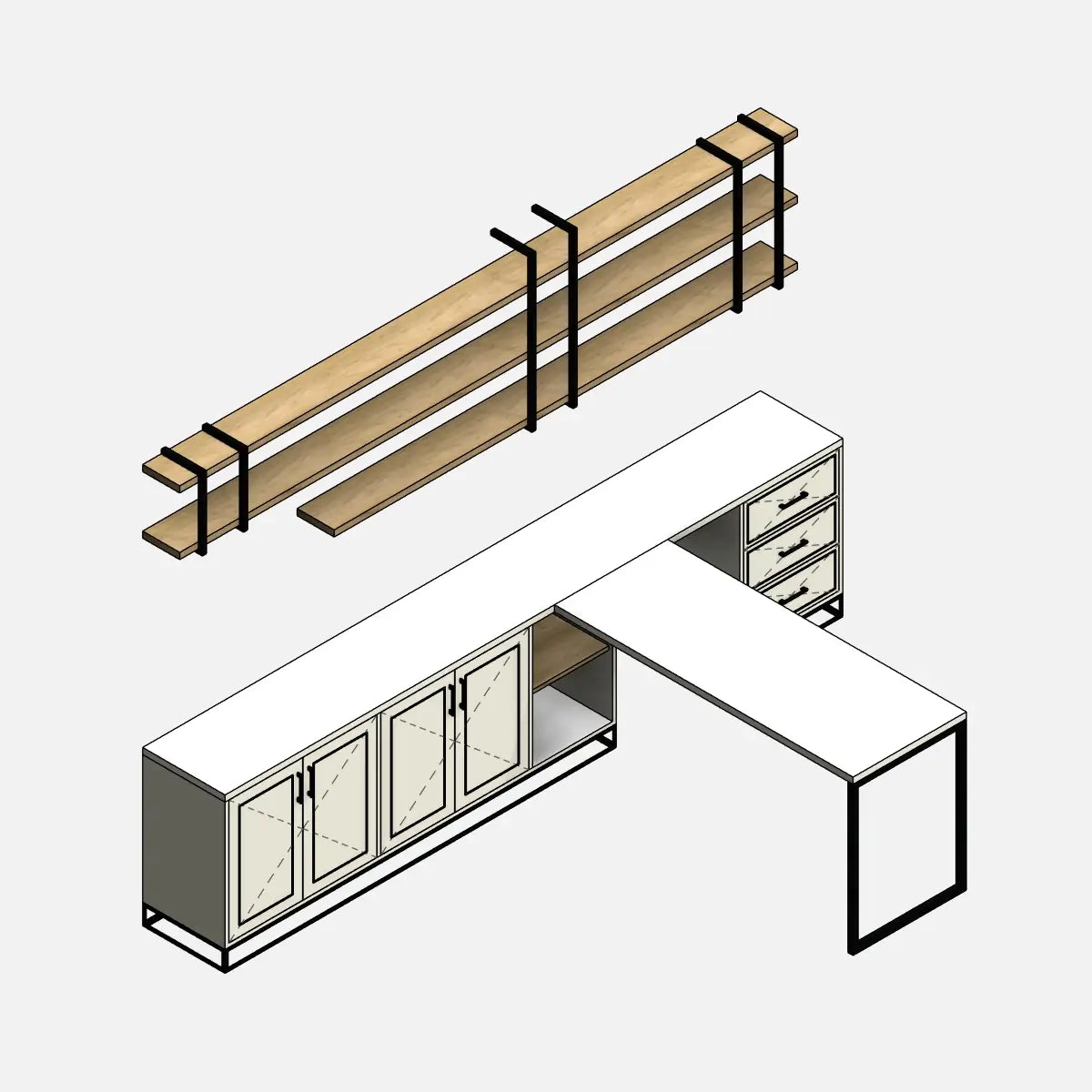

  • Preview of a parametric Revit workstation family. Workstation with a low shelf with drawers, doors, and open compartments, a metal-framed desk, and shelves with metal brackets. Realistic view.

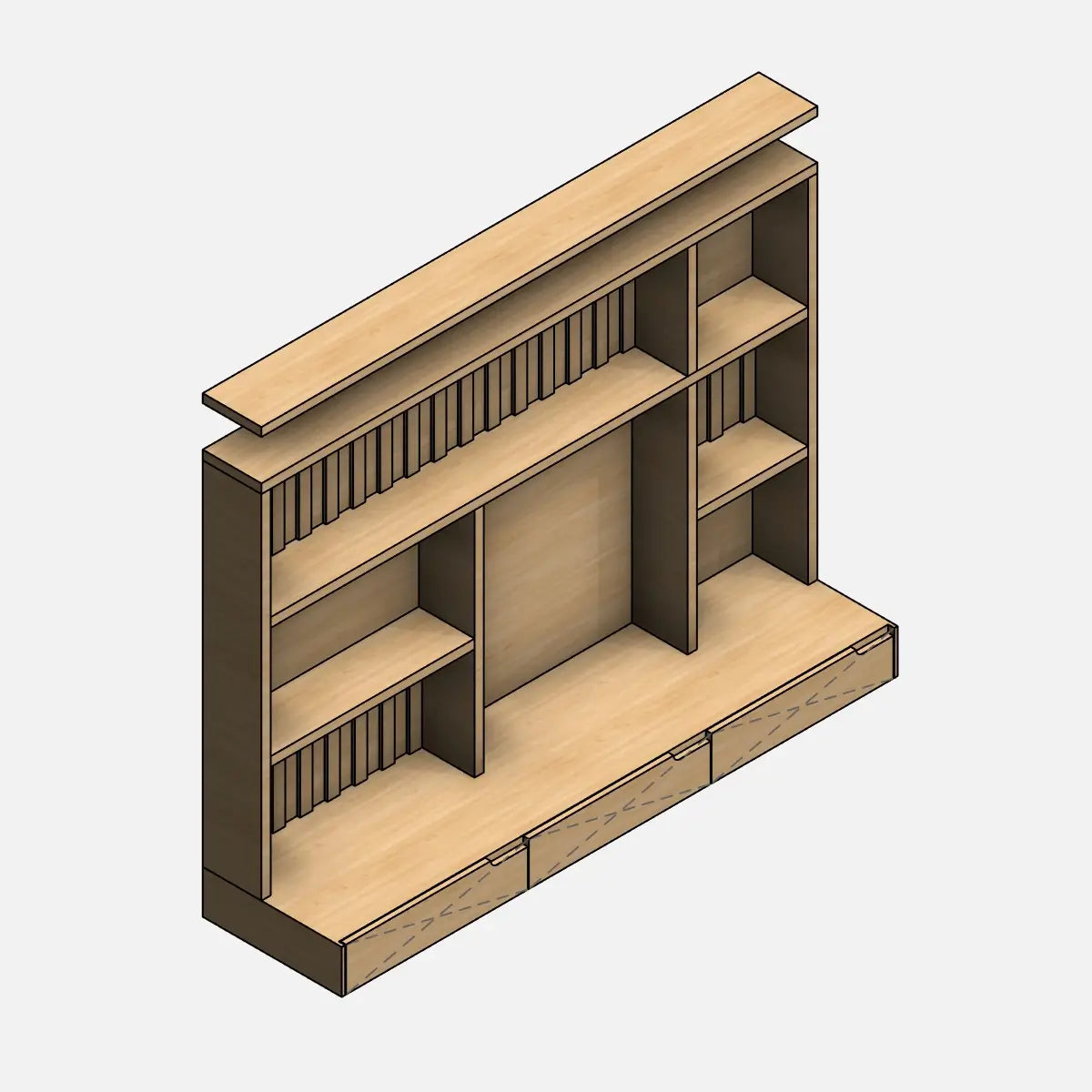

  • Preview of a parametric Revit workstation family. Workstation with a floating desk with three drawers, a wall-mounted shelf with shelves, and an interior with milled elements. Realistic view.

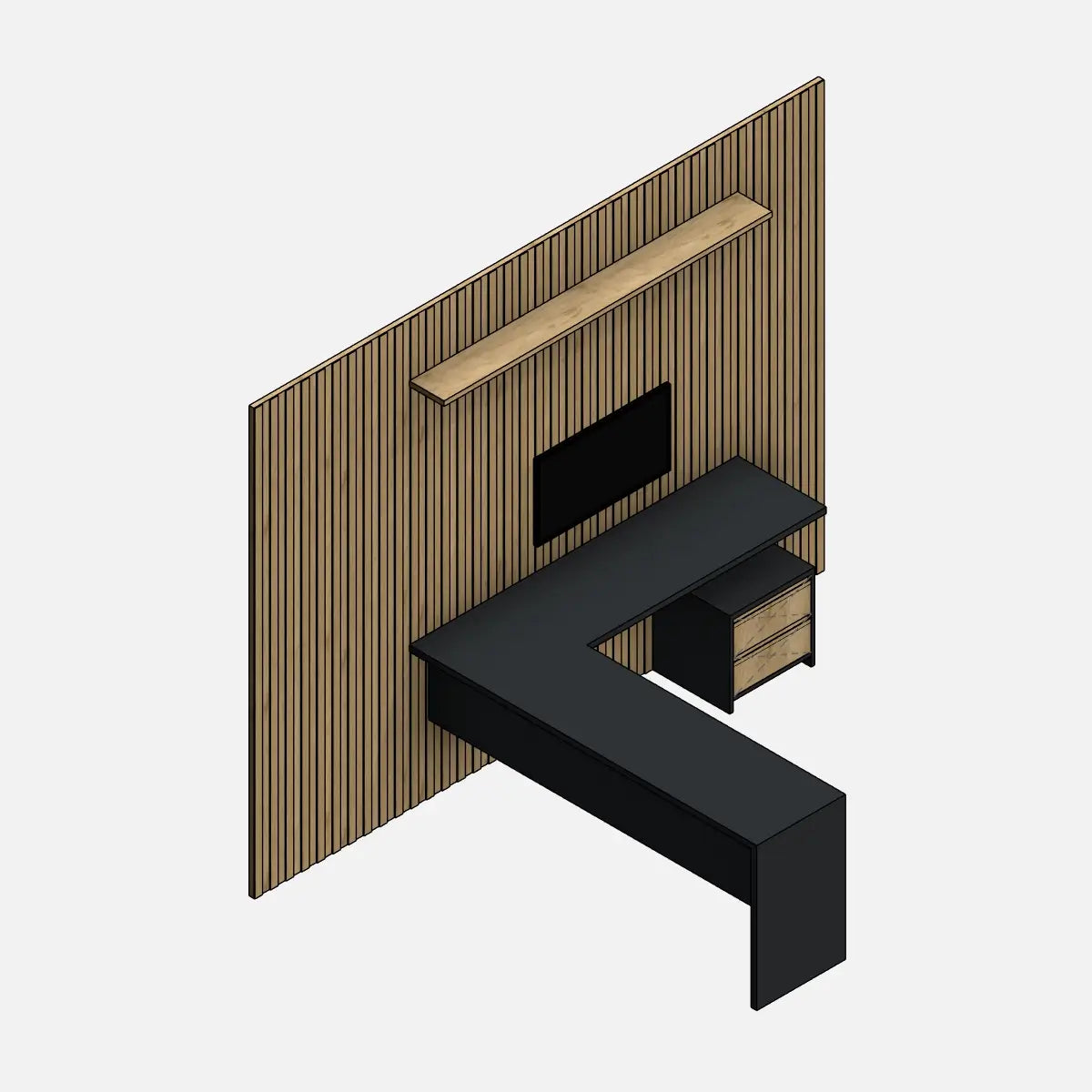

  • Preview of a parametric Revit family for a home office workstation, ideal for furnishing the living room as well. Desk with an L-shape, distributed on two sides. A low chest of drawers with two drawers and a TV on one side of the desk. A shelf above the TV. A slatted panel distributed on the TV side.

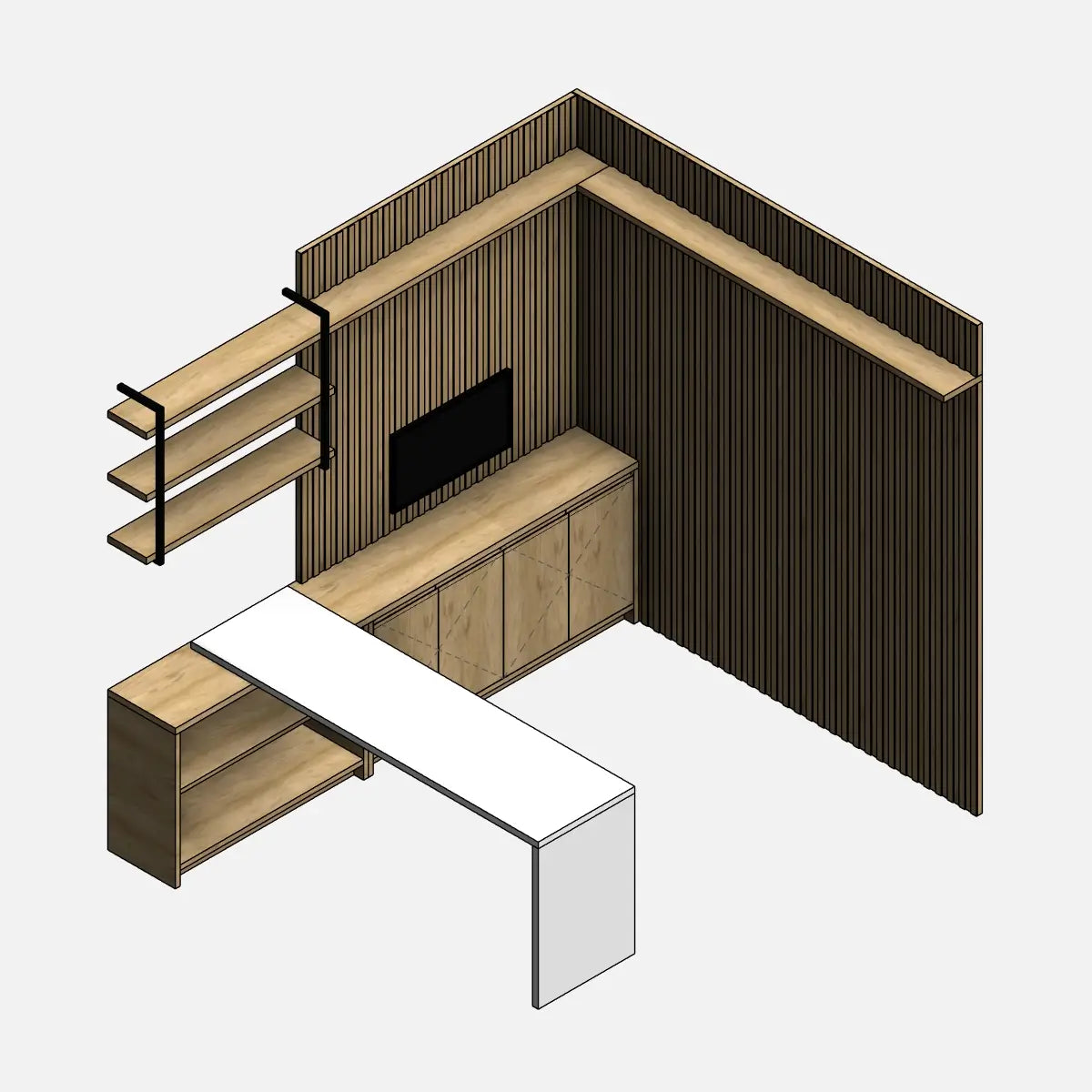

  • Preview of a parametric Revit family for a home office workstation, ideal for furnishing the living room as well. Workstation distributed on two sides. Low cabinet with four doors and an open compartment on one side. Desk, TV, and upper shelves on the side of the low cabinet with the open compartment. A shelf on the other side. Slatted panels distributed on both sides.

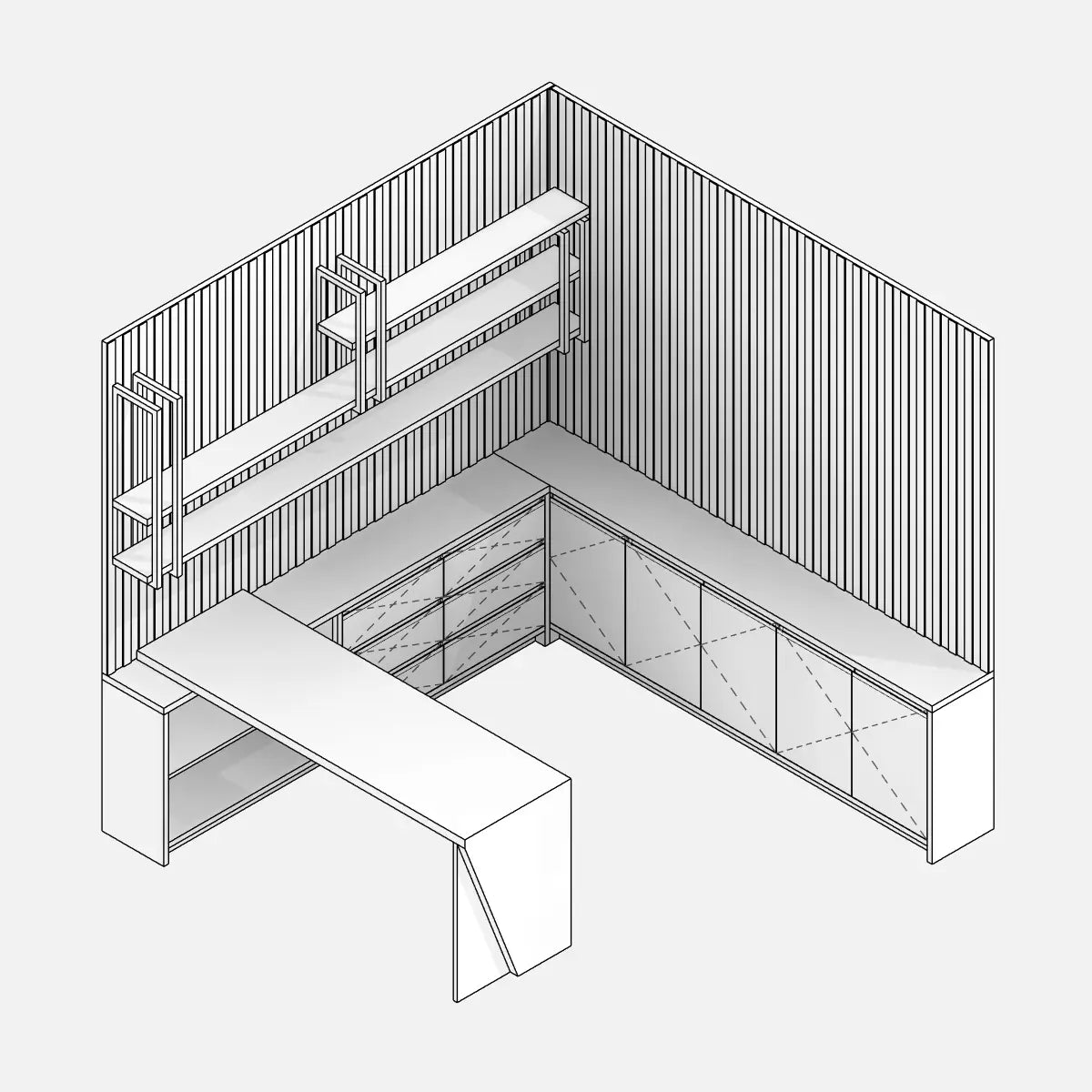

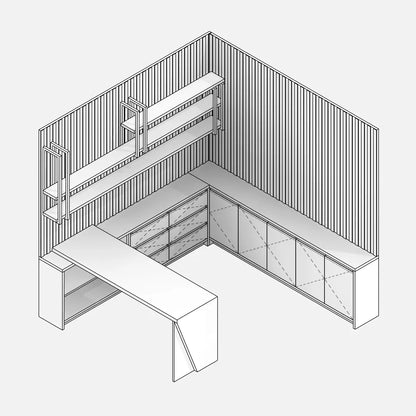

  • Preview of a parametric Revit family for a home office workstation, ideal for furnishing the living room as well. The workstation is distributed on two sides. A low shelf with five doors on one side, a low shelf with six drawers and an open compartment on the other side. A desk and upper shelves match the side of the low shelf with the open compartment. Milled panels are distributed on both sides.

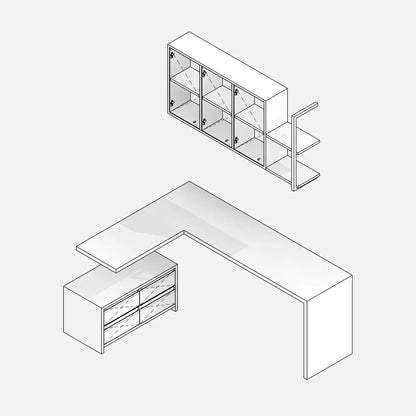

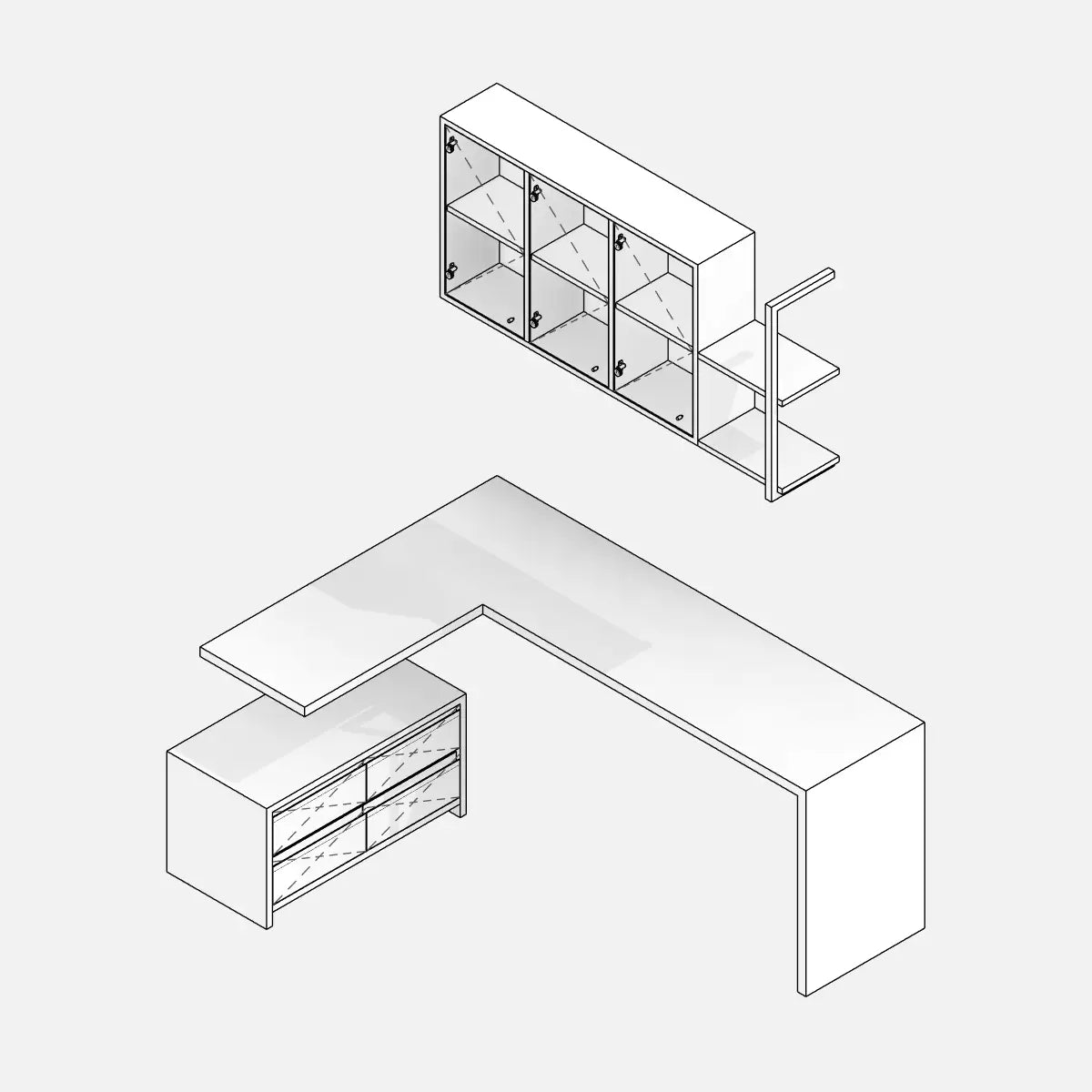

  • Preview of a parametric Revit family of a workstation that develops into an L-shape. On one side, a desk top and an overhead cabinet with three glass doors and shelves. On the other side, a drawers unit with four drawers. Professional Revit Family - Hidden Lines View

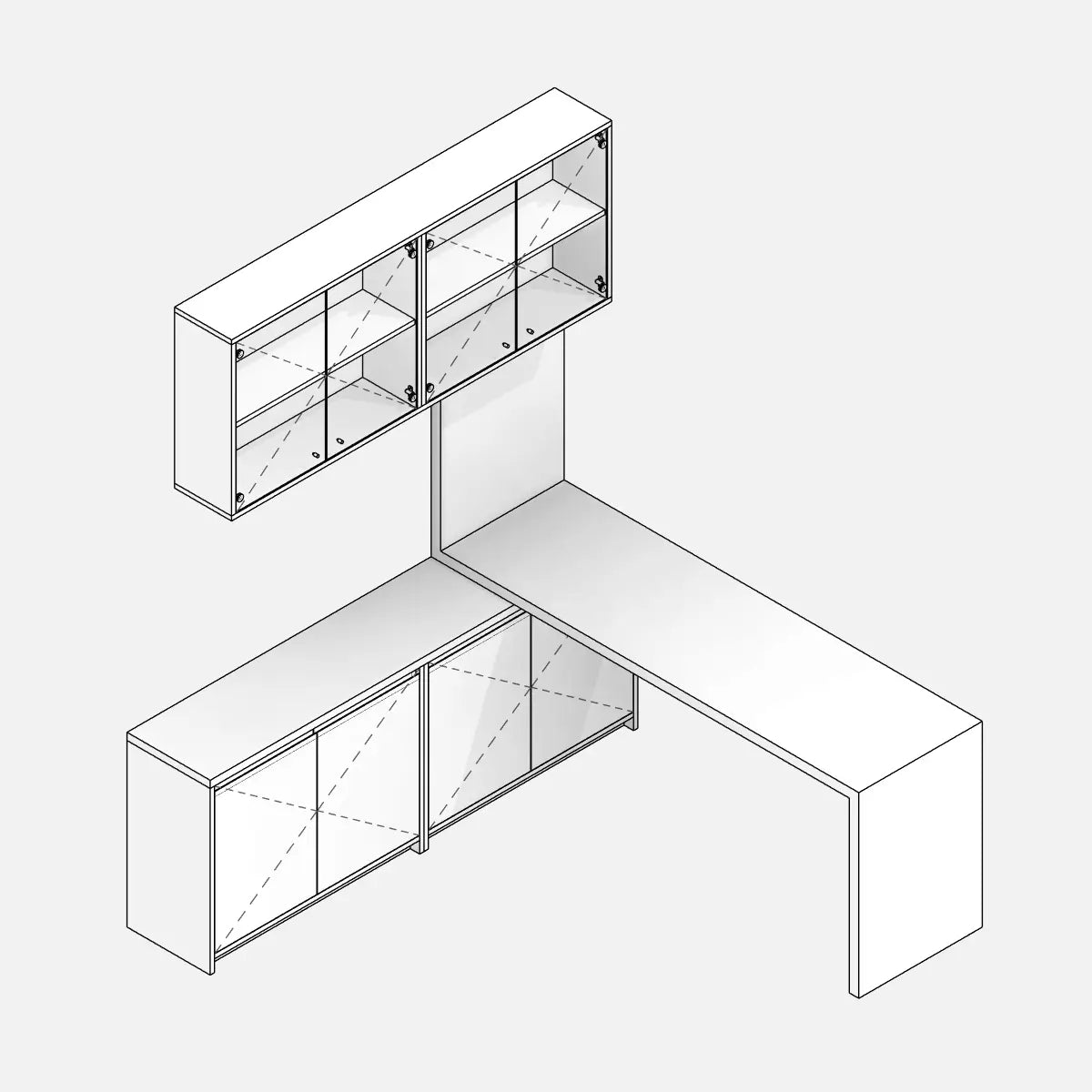

  • Preview of a parametric Revit family of a workstation that develops into an L-shape. On one side is the desk top, and on the other are two cabinets: a low wooden cabinet with four doors and an overhead glass cabinet with four doors. Professional Revit Family - Hidden Lines View

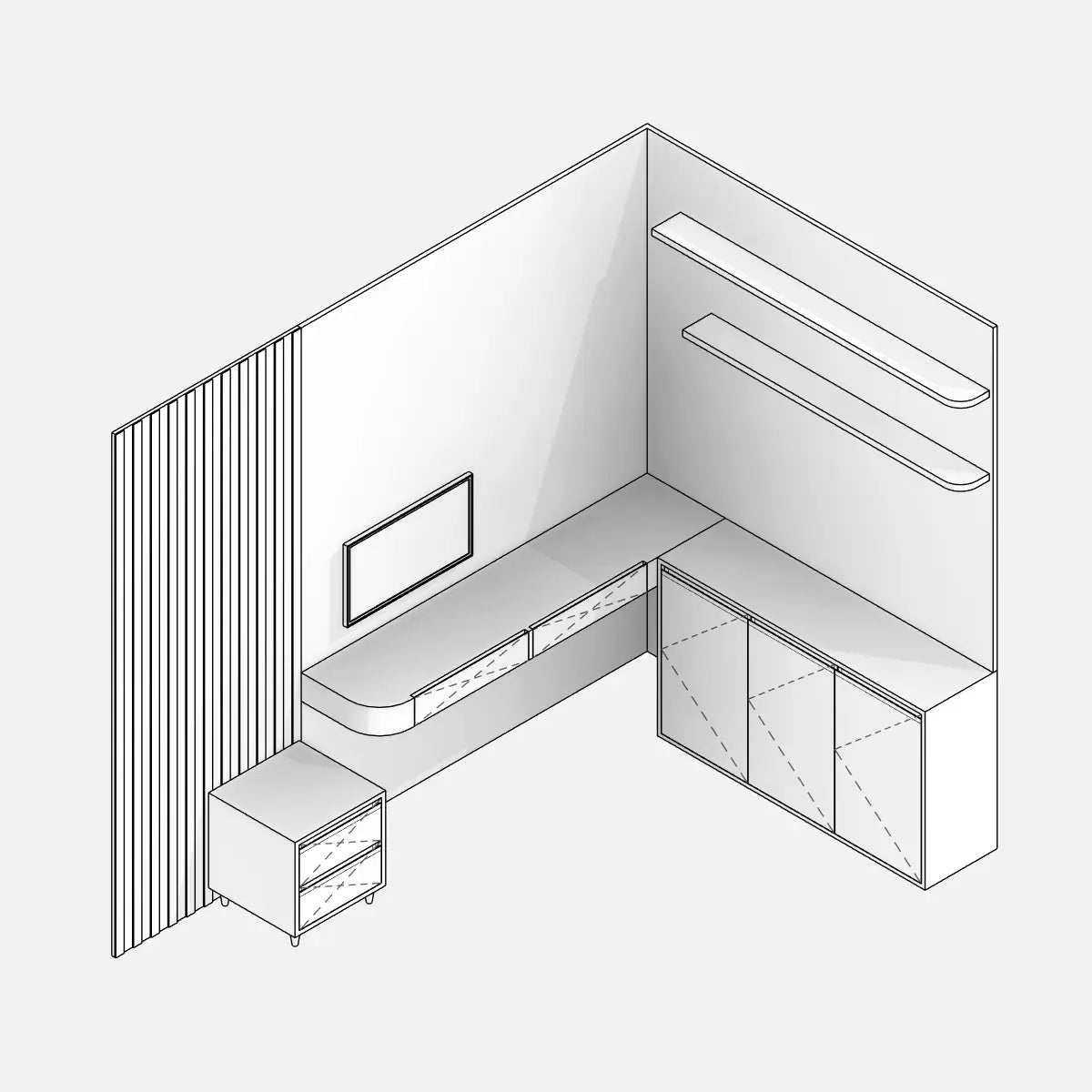

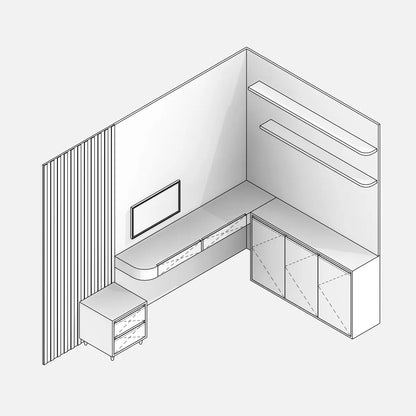

  • Preview of a parametric Revit family for a home office workstation, ideal for furnishing the living room as well. A desk with three drawers, a small drawer unit to the left of the desk, and a low cabinet with doors. The workstation is distributed on two sides, with a milled panel on the top. A TV is positioned above the desk, and two shelves are positioned next to the low shelf.

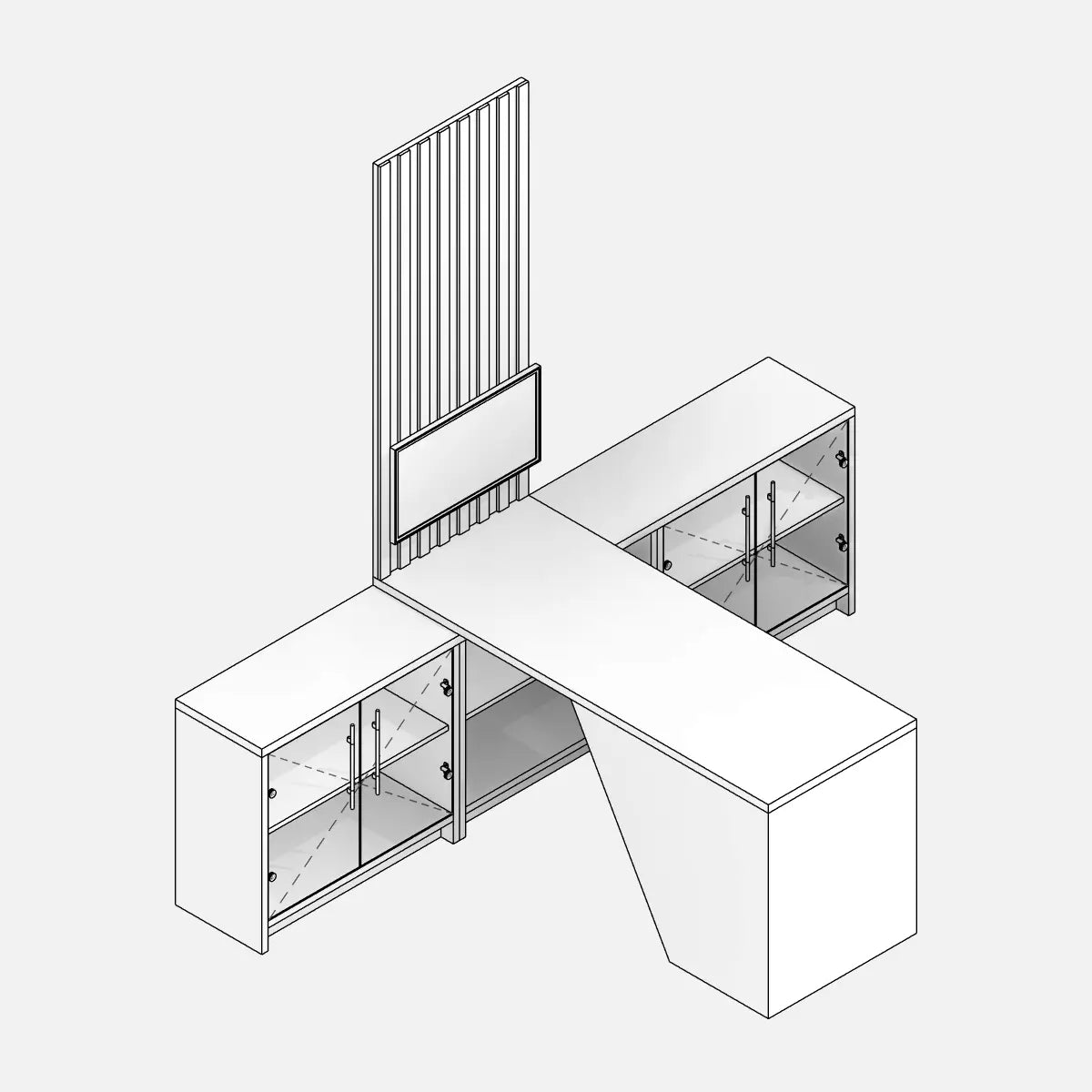

  • Preview of a parametric Revit family for a home office workstation, ideal for furnishing the living room as well. Low cabinet with four doors and an open central compartment. Desk arranged transversally above the central compartment. TV monitor positioned in the center with a milled panel distributed only where the TV is located. Hidden Lines View.

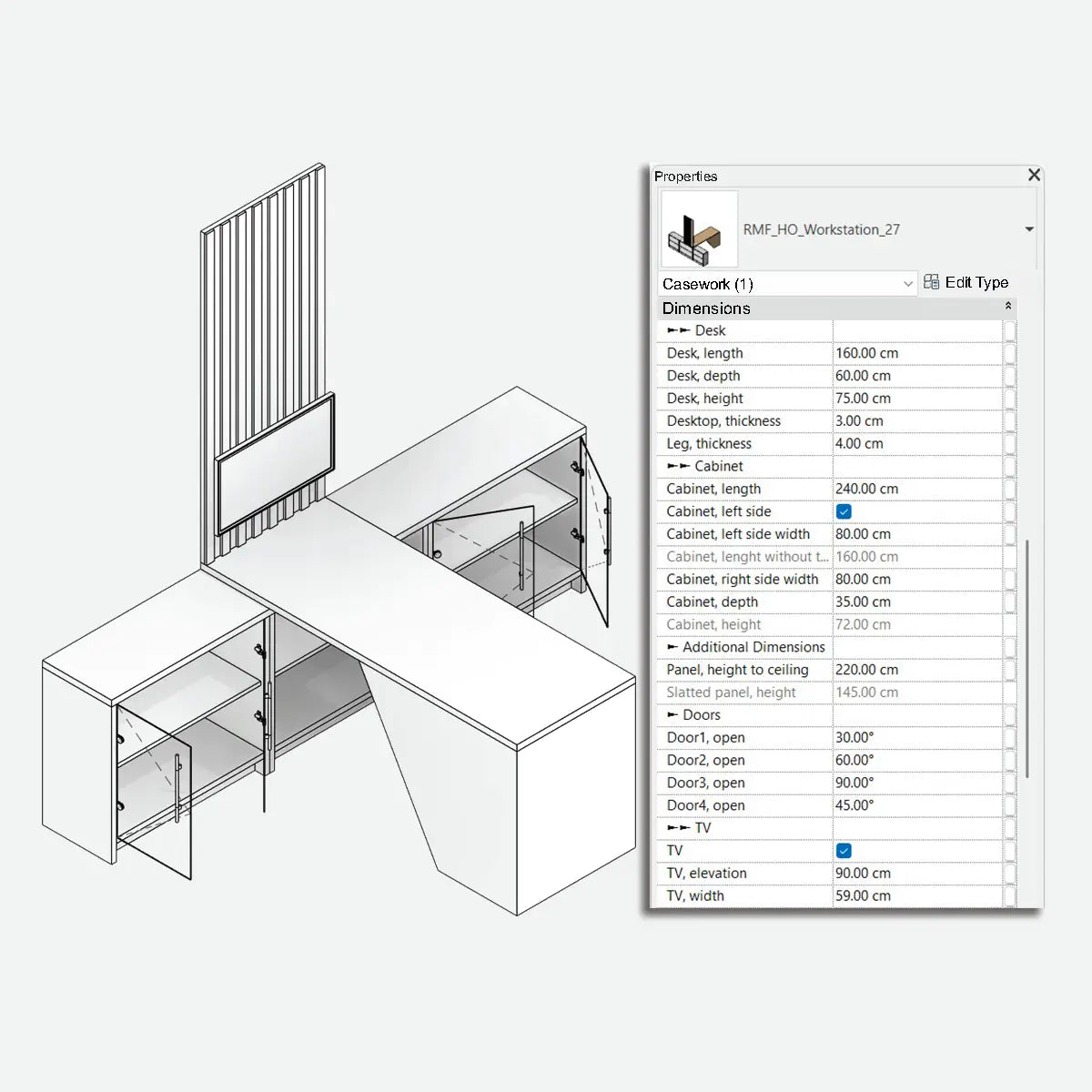

  • Preview of a parametric Revit family for a home office workstation, ideal for furnishing the living room as well. Low bookcase with four doors and an open central compartment. Desk arranged transversally above the central compartment. TV monitor positioned in the center with a milled panel distributed only above the TV. Preview of the properties tab with instance parameters for modifying the dimensions.

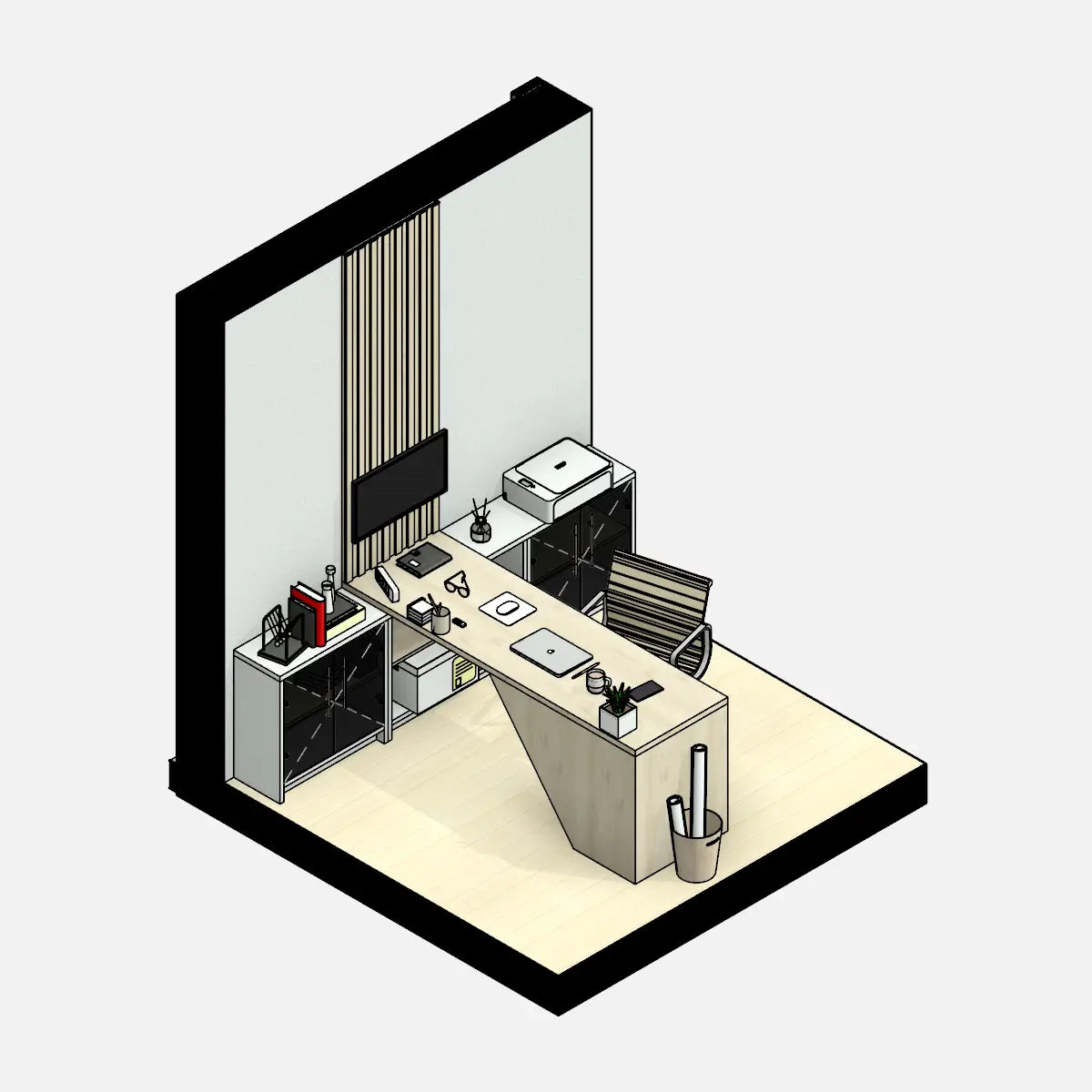

  • Real-world use example of a parametric Revit workstation family. Workstation plus office accessories. Realistic view.
1 12

FACTORY268

Home Office Workstations – Pack 01 | 9 Parametric Revit Families

Home Office Workstations – Pack 01 | 9 Parametric Revit Families

€18,00
€18,00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Digital Download
  • Revit Version: 2020
  • Pack Categories: Casework and Furniture
  • Units System: Metric and Imperial
  • Created by: Umberto Rinaldi

The home office workstations your projects have been waiting for.

Stop wasting time modeling from scratch. The Home Office Workstations – Pack 01 gives you 9 parametric Revit families of home office workstations, designed with a single goal in mind: to help you work better, faster, without compromise. Each family is built following a rigorous BIM workflow — Reference Planes, Parameters, Geometry, in that order. The result? Clean, lightweight, indestructible assets. Ready for any residential, commercial, or home staging project.

Package Contents

  • 9 Revit families (.rfa) — Metric and Imperial formats
  • Showroom File (.rvt) — Metric and Imperial, with preset views
  • Commercial license included
  • Instant download after purchase

Parameters and Features

  • Clean parameter dashboard — BIM-friendly by design
  • Instance parameters for quick customization
  • Fully adjustable dimensions — no two spaces are alike

Revit family of a parametric workstation. Preview of the properties tab showing the instance parameters for editing the dimensions of the family's various components: desk, shelves, bookshelf, and drawers. Actual opening of the three drawers.

  • Parametric materials — finishes adaptable to every project

Revit family of a parametric workstation. Preview of the properties tab showing the instance parameters for editing the materials of the various family components: desk, shelves, bookcase, doors, etc.

  • Control over drawer and door opening — realistic presentations at first glance, no more doors suspended in mid-air when opened

GIF showing the precision of shelf door opening. The doors don't appear to be suspended in mid-air after opening.

  • Visibility parameters — for some families, it's possible to turn certain portions of the shelving on/off

Preview showing how the same parametric Revit family can be used in a project. Visibility parameters can be used to turn certain elements of the family on or off.

Symbolic Lines

  • Symbolic opening lines in plan, section, elevation, and 3D (90°, 45°, EU/US standard)
  • Overhead symbolic lines for elements (shelves or ledges) above the cut plane

  • Graphic element visibility control — Visibility/Graphics via Object Styles or VG to: turn symbolic opening and overhead lines on/off or modify their thickness, color, and line type.

Technical Specifications

  • LOD300
  • Compatible with Revit 2020 and later versions
  • Files optimized for high performance

Ideal for

  • Residential and home office projects
  • Hybrid workspaces and private offices
  • Home staging and photorealistic renderings
  • Professional BIM documentation

Usage Note

We recommend viewing the parameter panel of each family before use, as shown in the presentation images, to verify compatibility with your design standards.

License Agreement

You may use the files in your professional and commercial projects, modify them to suit your needs, and incorporate them into projects for your clients.

You may not resell or redistribute the files (original or modified), upload them to public sharing platforms, or remove copyright information.

Non-exclusive and non-transferable license. Terms and Conditions

Factory268 products are updated over time — purchase includes future versions.
